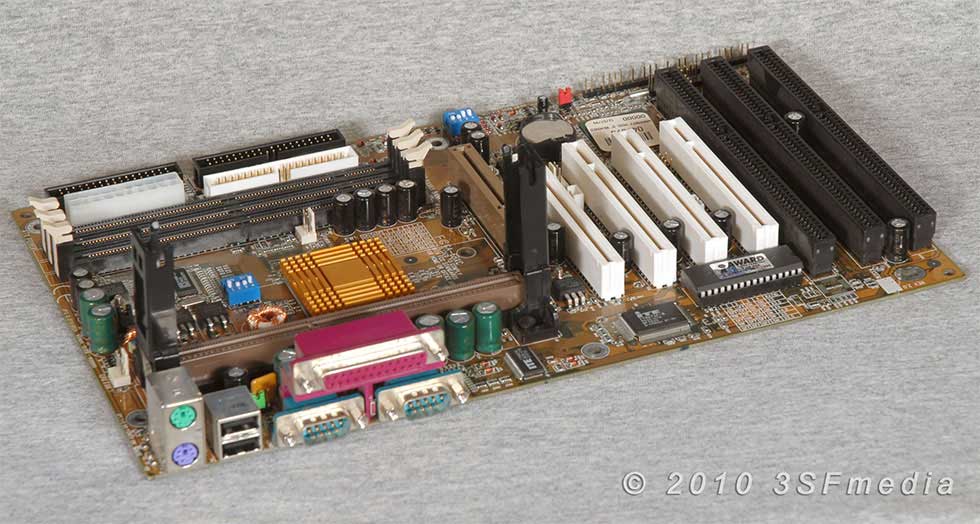

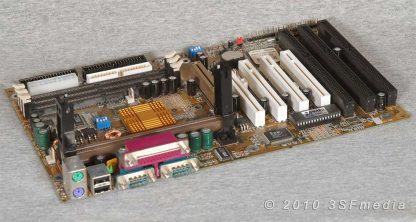

Tested and working GA-6BXC Slot 1 motherboard by Gigabyte. Actual mainboard is pictured and is Rev. 2.0. Guaranteed to be in working order.
Specifications:
| CPU |
- Intel ® Pentium ® II / III and Celeron™ Processer
- Slot1 for future Processor support
- 66/75*/83*/100/112*/133* MHz System Bus
- AUTO Detect CPU Voltage
- Clock multiplier 3.0/3.5……./9.5
|
| Chipset |
- Intel 82440 BX AGPset
- Intel ® 440BX AGPset
- iTE 8671 I/Oset (1Mb/S)
|
| Memory |
- 8MB to 768MB DRAM size
- 3 x 100MHz 168-pin 3.3v DIMM sockets support
- Supports 8/16/32/64/128/256 MB SDRAM DIMM Module
- Supports ECC Type DIMM Module (72bits)
|
| Expansion Slots |
- 1 x AGP Slot Supports 66/133 MHz speeds
- 4 x PCI Slot Supports 33MHz & PCI 2.2 compliant
- 3 x ISA Slot
|
| Form Factor |
- ATX, 4 layer PCB (30.7*18cm)
|
