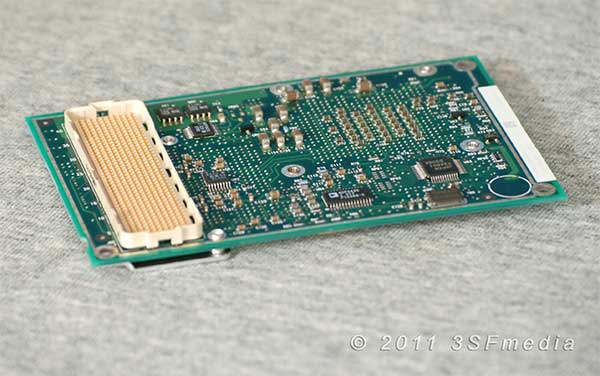

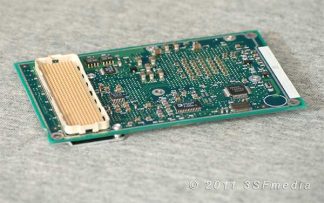

Intel Mobile Pentium III 600 MHz / 256 KB / 100 MMC2


1 in stock

SKU: PMM60002001AA Category:
Weight: .4 lbs


Working PII 600 MHz processor pulled from working Dell Inspiron 3800 laptop. Guaranteed not to be DOA.

CPU part number: PMM60002001AA

General information
Type CPU / Microprocessor
Market segment Mobile
Family Intel Pentium III Mobile module
CPU part number PMM60002001AA
Frequency (MHz) 600
Bus speed (MHz) 100
Clock multiplier 6
Package Mobile Module MMC-2
4″ x 2.5″ (10.2 cm x 6.4 cm)
Socket 400-pin Mobile Module Connector 2 (MMC-2)
Architecture / Microarchitecture
Manufacturing process 0.18 micron
Data width 32 bit
Floating Point Unit Integrated
Level 1 cache size 16 KB instruction cache
16 KB data cache
Level 2 cache size on-die 256 KB 8-way set associative cache
  • MMX technology
  • SSE
Low power features
  • Auto Halt mode
  • Stop Grant mode (not supported)
  • Quick Start mode
  • Sleep mode (not supported)
  • Deep Sleep mode
On-chip peripherals 82443BX Host Bridge system controller with DRAM controller and PCI bus controller
Electrical/Thermal parameters
V core (V) 1.6 (maximum performance mode)
1.35 (battery optimized mode)
Minimum/Maximum operating temperature (°C) 0 – 100
Minimum power dissipation (W) 1.35 (Deep Sleep mode, PMM60002001AA)
1.96 (Deep Sleep mode, all others)
Thermal Design Power (W) 16.6 (typical)
Notes on Intel PMM60002001AA
  • Processor runs at 500 MHz in battery optimized mode
  • Typical module voltage is 12 Volt, minimum/maximum voltage is 7.5V – 21V
